1969 Chevrolet Camaro

1969 Chevrolet Camaro Pro Touring Rebuilt LT4, TKO 600 5-Speed, QA1 Suspension & Wilwood Brakes

Highlights


1969 Chevrolet Camaro Pro Touring build

Rebuilt LT4 V8

Brian Tooley Racing Stage 3 supercharged camshaft

Forged pistons

DOD deleted

Locked phaser

Holley accessory drive system

Holley Terminator X Max engine management

American Autowire full wiring harness

Stainless headers

3-inch stainless exhaust

Flowmaster mufflers

Tremec TKO 600 5-speed manual transmission

McLeod dual-disc clutch

QuickTime scatter shield

Hydraulic clutch system

Carbon-fiber driveshaft with 1350 billet yokes

Narrowed 12-bolt rear axle

3.73 rear gearing

Eaton Positraction differential

Moser axles

Detroit Speed mini-tub

QA1 front control arms

QA1 front coilovers

QA1 front sway bar

QA1 rear 4-link

QA1 rear coilovers

QA1 subframe connectors

Wilwood 6-piston front brakes with 14-inch rotors

Wilwood 4-piston rear brakes with 13-inch rotors

Forgeline GA3 wheels

18x8 front wheels with 225/40ZR18 BFGoodrich g-Force Comp-2 A/S tires

18x12 rear wheels with 335/30ZR18 BFGoodrich g-Force Rival S tires

Distinctive Industries front seats

Deluxe black-and-white houndstooth interior

Vintage Air Gen V climate control

Detroit Speed windshield wiper system

Dakota Digital instrumentation

Hugger Orange exterior finish completed in 2026

Smoked glass

New chrome window moldings

New bumpers

New side markers

New taillights

New mirrors

New door handles

Front spoiler

Rear deck spoiler

LT4-style exterior graphics


This 1969 Chevrolet Camaro is a thoroughly developed Pro Touring build that combines first-generation Camaro styling with a modern supercharged LT4 powertrain, upgraded chassis hardware, substantial braking capability and a carefully finished interior.

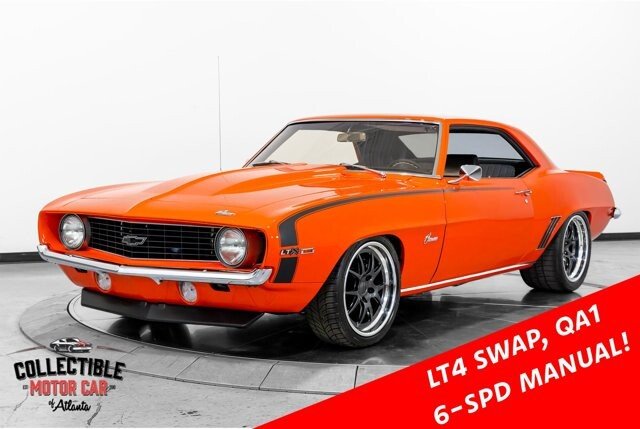

The body is finished in vivid Hugger Orange, with the paint completed in 2026. Black LT4-inspired graphics run along the front fenders and doors, while front and rear spoilers give the car a more aggressive profile. The exterior was further refreshed with smoked glass, new chrome window moldings, new bumpers, new side markers, new taillights, new mirrors and new door handles.

Under the hood is a rebuilt LT4 V8 featuring forged pistons, a Brian Tooley Racing Stage 3 supercharged camshaft, DOD delete and a locked phaser. Engine management is handled through a Holley Terminator X Max system, while a Holley accessory drive system organizes the front drive components. The engine bay is cleanly presented, and the LT4 installation gives this Camaro the kind of powerplant expected in a serious contemporary Pro Touring build.

Exhaust gases are routed through stainless headers into a full 3-inch stainless exhaust system with Flowmaster mufflers. The combination should give the car the sound and flow capacity appropriate for the supercharged LT4 setup.

Power is sent through a Tremec TKO 600 5-speed manual transmission. Supporting hardware includes a McLeod dual-disc clutch, QuickTime scatter shield, hydraulic clutch system and a carbon-fiber driveshaft fitted with 1350 billet yokes. At the rear is a narrowed 12-bolt housing equipped with 3.73 gearing, an Eaton Positraction differential and Moser axles.

The chassis was built to match the powertrain. A Detroit Speed mini-tub allows the Camaro to accommodate its wide rear wheel-and-tire combination, while QA1 hardware is used extensively throughout the suspension. Up front are QA1 control arms, coilovers and sway bar. The rear utilizes a QA1 4-link arrangement with QA1 coilovers, and QA1 subframe connectors further tie the structure together.

Braking is handled by a large Wilwood system consisting of 6-piston front calipers over 14-inch rotors and 4-piston rear calipers over 13-inch rotors. The photos also show drilled and slotted brake rotors, giving the chassis substantial stopping hardware to match the rest of the build.

Forgeline GA3 wheels complete the stance. The front setup measures 18x8 with 225/40ZR18 BFGoodrich g-Force Comp-2 A/S tires, while the rear uses 18x12 wheels carrying massive 335/30ZR18 BFGoodrich g-Force Rival S rubber. Combined with the mini-tub and lowered suspension, the fitment gives the Camaro an aggressive but properly proportioned Pro Touring appearance.

Inside, the car blends classic Camaro styling with upgraded comfort and instrumentation. Distinctive Industries front seats are trimmed in a deluxe black-and-white houndstooth pattern that continues into the rear seating area. A three-spoke steering wheel, manual shifter and black interior retain the classic flavor, while Dakota Digital gauges modernize the driver information display.

Additional interior upgrades include Vintage Air Gen V climate control and a Detroit Speed windshield-wiper system. The photos also show a Holley Terminator handheld display mounted near the shifter, providing direct access to engine-management data.

Overall, this 1969 Camaro is a serious, component-rich Pro Touring build. The rebuilt LT4, TKO 600 5-speed, carbon-fiber driveshaft, narrowed 12-bolt, QA1 suspension, Wilwood braking system, Forgeline wheels and freshly finished Hugger Orange exterior come together in a Camaro built for significantly more than static display.
