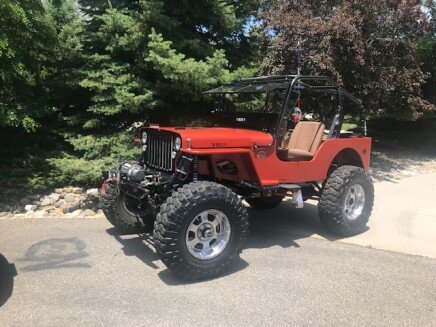

1944 Willys Custom

One of a kind- 1944 Willy's

This custom Willy's is a street legal rock crawler. Must see to appreciate it's uniqueness!
Disk brakes front & rear
High steer knuckles with 1 ton ball joints and DOM tubing Tie-Rod and Drag Link
Limiting straps on front and rear axles
14" travel Rock equipment coil overs in all corners
Custom Triangulated 4-link rear suspension with Heim joints
Custom long arm front suspension similar to Rubicon Express to custom fit this jeep
All suspension is .250 wall DOM tubing
NP 435 Ford transmission (1st gear is 6.69 to 1)
Dana 300 with Tera low 4:1 conversion with Twin Sticks Ratio is 131:1 to the ground in 1st-gear low range
Dana 44 High pinion with ARB front-end Dana 60 with a spool rear end
4340 Chromoly Dutchman alloy 35 spline axles front and rear
Warn hubs & Hydro assist steering Custom built mustang 302HO with a Lunzani cam, Aluminum pistons, gear-driven timing Customized Holly carburetor / no computer / Moroso rear sump oil
Aluminum Griffin radiator with Spal fan
All MSD electronic ignition with MSD6AL box
Painless wiring harness
37" x 12.50 x 17 BFG Krawlers
Flaming river column, joints and adapter with Grant wheel
Ham & CB radios
15 gallon fuel cell
Front fenders custom built for strength
Auto meter gauges
The custom boxed frame was created for the ground up restoration with a 93" wheelbase
2"x4"x .120 wall tubing
Body, hood and grill are all original however tub was stretched 4.
